软件试用 Demo3D-虚拟物流模拟仿真系统软件

软件简介

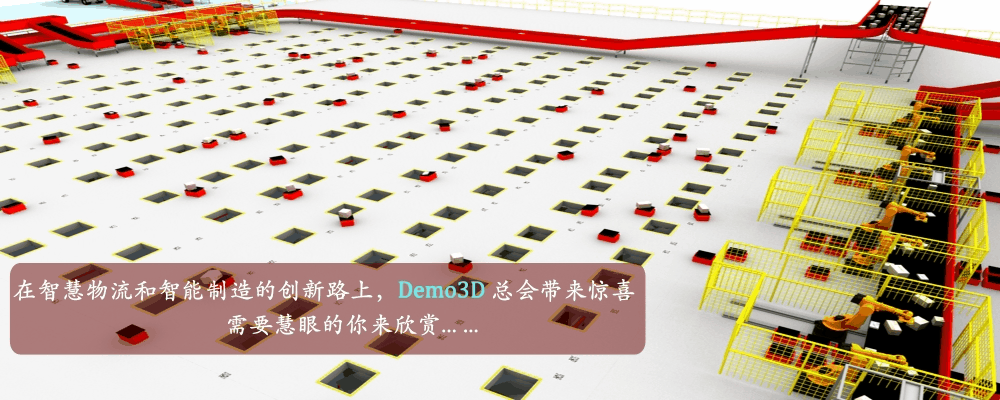

Demo3D 是 Emulate3D公司开发的三款软件中的核心产品,主攻物流系统的数字化敏捷设计、震撼展示、方案验证。Demo3D的最终目标,是帮助物流设备企业、咨询服务企业、系统集成企业快速高效地实现成功销售、成功设计、成功验收。
Demo3D 是唯一将摩擦力、重力、阻力、惯性等物理特性融入到物流运动过程中的仿真软件,细节更逼真,产生的效果更真实可信。您的仿真软件支持双向导入导出AutoCAD 2D/3D DXF图纸吗? Demo3D 可以。Demo3D 彻底改变了数字化设计的流程,支持数字化敏捷设计的各个阶段。不论是原型概念设计还是详细精确设计,Demo3D都可以将认可的动态方案自动生成AutoCAD 2D/3D设计图以及其他多种格式工程文件。可以将在 AutoCAD Inventor, Solidworks, Pro/E, 3DS MAX, Google Sketchup等设计工具中的设备模型导入后,迅速制作成动态模型,并且和数字化流程结合起来,形成静态设计— 动态流程验证 — 动态流程展示 — 设计出图的良性循环,大大提高了设计的效率和精确度。

系统仿真软件Demo3D的优势


(1)细节考虑周道
Demo3D 是唯一将摩擦力、重力、阻力、惯性等物理特性引入到物流设备仿真的平台,因此,效果更震撼,更真实可信。

(2)支持物流设备形态和功能更丰富
通过简单的配置,Demo3D 支持多种物流领域独特的设备和运输方式,大大简化编写程序的工作量,简单的拖拉方式就可以快速完成复杂的物流运输模型。

(3)支持敏捷设计/验证/展示的物流设计模式
可以将满意的三维设计模型直接生成包括 AutoCAD 2D/3D 的设计图。

(4)Demo3D 包含的物流模块
堆垛机 - AGV - 滚筒传送带 (直线和曲线)- 皮带传送带 (直线和曲线)- 链式传送带 - 链式提升传送机 - 推杆 - 阻边 - 滚筒式换向器- 启止感应器 - 逆向感应器 - 负载传输(有/无物理特性)- 负载创建 - 负载删除 - 曲面导流板 - 平面导流板 - 运输车 - 自动存储系统 - 滚筒式转向台 - 链式转向台 - 提升机 - 垂直分拣 - 引导器 - 翻转件 - 三相托盘转向器 - 三相滚筒转向器 - 托盘穿梭机 - 硬纸箱 - 欧式托盘 - 托盘 - 单高欧式托盘 - 双高欧式托盘 - 单高托盘 - 双高托盘 - 敞口箱 - 板条箱 - 托盘 - 油桶 - 其他多种负荷箱 - 叉车 - 手动式提升推车- 托盘搬运车- 传输式平炉 - 各种工业货架 - 箱式货架- 金属楼梯- 货架 - 仓库建筑 - 办公室桌 - 推车 - 钢架 - 灭火器 - 塑料桶 - 卡车 - 隔断 - 椅子 - 植物 - 笔记本电脑 - 取货车 - 扳手 - 螺丝刀 - 皮箱 - 轿车 - 锁链式屏障 - 桌 - 电视 - 白板 - 台式计算机 - 交通指示牌 - 人物等等

(5)开放的体系结构
建立在 .NET 体系结构基础之上,Demo3D 允许用户从零开始设计自己的模块,包括三维动画和内在逻辑,允许建立具备自主知识产权的模块库。Demo3D 提供的模块全部开放源代码。Demo3D 的内在开发语言是 JScript 和 C#,易学易用,并且提供了智能提示、开发调试环境,无须另外安装编译器,适合各级计算机水平的人员。

(6)自动产生渲染文件,制作极具视觉冲击效果的静态图片和动态影像
Demo3D 和免费渲染软件POV-ray 完美集成,自动产生 POV-ray 静态和动态影像的渲染文件,支持后期制作。短时间内可以将一幅普通视觉效果的静态图片或动态影像变成极具视觉冲击效果的展示作品。

英文简介


Demo3D - Awesome Models, Fast

Get Your Clients' Attention
Provide your prospect with realistic looking videos of your proposal, a bill of materials, and a CAD layout to demonstrate your commitment. Demo3D is unique in providing the features and functionality you need to create impressive models fast, without spending the project budget before you even get it.

Prototype Systems, Reduce Project Costs
Demo3D allows a wide range of equipment to be prototyped and tested with different controls and operating logic. Users verify synchronization, flow, sequencing, and functionality before committing to physical builds, saving time and money. Demo3D models reduce the physical prototyping necessary to develop new machines, and are a powerful way to demonstrate operation to project stakeholders.

Model Fast with Equipment Catalogs
Assemble impressive and accurate demonstration models, create CAD layouts, and generate a bill of materials from plug and play catalog elements in time for those initial project discussion meetings. Demo3D's unique build approach makes captivating sales models cost-effective, and allows your prospects to envision your proposals realistically.

Building a Demo3D Model is Straightforward
To assemble the layout, drag catalog elements into the workspace. The pieces snap together accurately, and you can set parameters like speeds, number of layers to palletize, and so on. Next, add load creators to introduce loads at the rate you want to demonstrate system operation. Last, overlay routing information to make products move around the system the way you want. That's it - the model is ready to generate the bill of materials, the CAD plan, and captivating videos.

How Simple Was That?
The core of Demo3D is the QuickStart catalog, comprising all the commonly used equipment you need to put together a distribution center, a warehouse, or a manufacturing facility. The "smart" catalog elements really help your workflow; they know what to do when they are connected together, and exhibit a default operation that will suit most needs.

Intelligent by Default
Pallets advance from conveyor section to section without colliding; robots palletize as you'd expect; shuttles pick up and drop off reliably; but it doesn't end there. You can modify the default behavior of any element to make it do pretty much whatever you need it to do - and without scripting.

Easy to Use, Open to Customization
Many of our users are material handling equipment manufacturers who use the QuickStart catalog as a template for their personalised catalog of proprietary equipment. Demo3D provides a fully featured development environment for constructing smart catalog elements.
